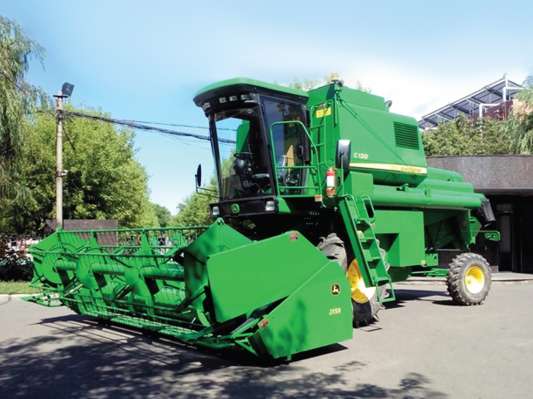

The John Deere C120 combine harvester features cylinder tine separator (CTS) technology with a threshing rotor to maximize threshing and separation capacity, and superior grain quality. Its shoe features a large adjustable chaffer and a large sieve with a total cleaning area of 3.39 m2 to ensure high harvest speeds to keep pace with high-yielding crops. The John Deere 4045 HYC15, turbo-charged, water-cooled engine’s power output is 121 kW. It delivers constant, reliable power, keeping the combine productive in all harvesting conditions
Sprcifications:
| Cutting width | 4.6 m |
| Drive wheel tread | 2.6 m |
| Steering wheel tread | 2.6 m |
| Threshing cylinder type | Rasp bar and spike tooth |
| Cylinder width by diameter | 1 020 × 610 mm |
| Separation type | Single-cylinder tine separator |
| Separation area | 1.97 m2 |
| Cleaning type | Fan and chaffer |
| Cleaning area | 3.4 m2 |
| Grain tank capacity | 4.2 m3 |
| Engine power | 121 kW |
| Engine type | John Deere 4045PTE turbo-charged, water-cooled engine |
| Engine emission level | Stage III |
| Dimensions (length by width by height) | Transport without header: 7.23 x 3.15 x 3.8 m |
| Total weight | 9 180 kg without header, but with straw chopper |
| Ground speed | Forward: 1.05 – 19.7 km/h, reverse: 2.40 – 5.55 km/h |
| Weight | 1400 kg |
|---|---|
| Breed | |
| Rice Kg | |
| SC 526 Maize Seeds | |
| SC 612 Maize Seeds | |
| Serial Number | |
| Signal Soybean Seed (25kg) | |
| Signal Soybean Seed (5kg | 25kg) | |
| Signal Soybean Seed (5kg) | |
| Size | |
| Spray Radius |
