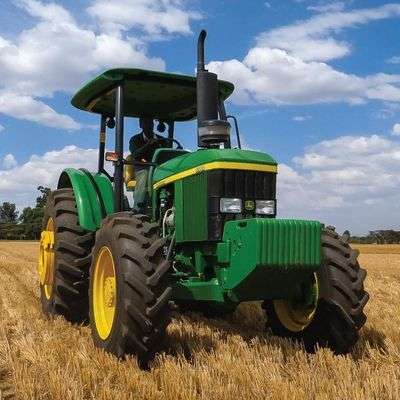

John Deere 6100B (100HP, 4WD)

Availability:

Out of stock


Simple and reliable – with its robust quality and great versatility, this tractor is made to meet your needs: an uncomplicated machine that can withstand the hardest loads yet is still attractively priced.

• Powerful 4 cylinder, direct injection engine
• Dual Clutch, Dry type
• Power Reverser Transmission
• Mechanical brakes oil immersed for minimum wear and tear

56,800,499.00

Out of stock

Compare

John Deere 6100B Specifications

John Deere 6100B Engine
Engine Model 4045T
Engine Power @ rated rpm 106 HP (77.96 kW)
Type Inline, direct injection, Turbo
Factory Observed PTO Power 90 HP (67.11 kW)
Rated Engine Torque 331 Nm @ 2100 rpm
Cylinders 4
Bore 106 mm (4.17 in.)
Stroke 127 mm (5 in.)
Rated Speed 2100 rpm
Displacement 4.5 L
Fuel Tank Capacity 150L
Air Cleaner Dry Dual Element
Electrical System



Battery Voltage 12 V
Cold Cranking Amps P925 A
Alternator Amperage 75 A
Starting Motor Power 4.2 kW
Transmission
Collar Shift Standard
Gears 9 Forward, 3 Reverse
Speed Ranges 3
Main Clutch Type/Diameter Dry Clutch/12 in.
Brakes
Type Mechanically Actuated, Wet Disk
Hydraulic System
Type OpenCenter
Pump DualGear
Pump Flow (Hitch and Remotes) 48.2L/min
Pump Flow (Power Steering) 26.9L/min
Pump Capacity at 2100rpm 48.2L/manpower
r Steering Hydrostatic
Flow @ Rated Engine Speed @16,000kPa 0.8L/sec maximum
m Pressure 19MPa (2755.7psi)
Output 13.7kW
Selective Control Valve (SCV) 2 Standard: 0,1 & 3 Optional
Power Take Off (PTO)
Control Live Independent
Activation Mechanical
540/1000 rpm Switchable, Rear Standard
Engine Speed 2100rpm
Operator Station
Roll Over Protective Structure (ROPS) Rigid ROP Standard
Operator Seat Mechanical Suspension w/out Operator Presence Switch
Foot Throttle Standard
Horn Standard
Three Point Hitch
Type Category II
Fixed Draft Links Standard
Hitch Lift Capacity 610mm behind lift point 2190kg(4829lb)
Dimensions
Wheelbase MFWD Overall Height (top of exhaust)
Overall Length, MFWD 4422mm (174.09in.)
Front Tread Range 1529 – 2025mm
Rear Tread Range 1512 – 2016 turning
g Radius (with brakes) 4m (157.48in.)
Turning Radius (without brakes) 4.5m (177.17in.)
Overall Width (Flange to Flange) 1652mm (65.03in.)
Overall Height (top of exhaust) 2860mm (112.6in.)
Ground Clearance
Front Axle – MFWD Front Differential 457mm (18in.)
Front Axle – MFWD Output Gearbox 433mm (17in.)
Rear Axle Housing (18.4x34tires) 670mm (26.4in.)
Drawbar 468mm (18.4in.)
Shipping Weight
Open Station with ROPS 3700kg (8157lb)
Ballast
Weight 1400 kg
