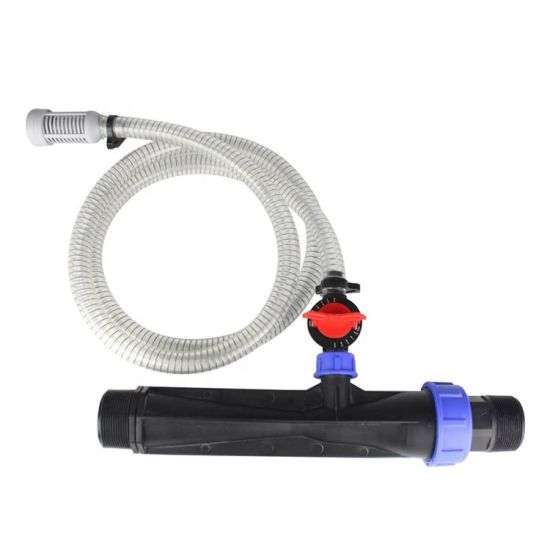

1 inch Venturi


This hose set is designed for agriculture Fertilization tool use. Made of high-quality material, durable and easy to use, connected to the main pipe with the fertilizer applicator kit easily. Threaded inlet and outlet connectors make it leakproof and tightly hold.

16,955.00

Compare

We can provide three sizes of Venturi fertilizer injector including 1″,1.5″ and 2″. You can select it according to irrigation fertilizer amount. It has many advantages such as simple construction, easy operation, free power. And it is very efficient for small and medium-sized irrigation areas to apply water and fertilizer.

Meanwhile, Venturi injector can inject liquid fertilizer and other water solvents into pipe network of irrigation system. So this kind of fertilizing device was widely applied in micro-irrigation, drip irrigation, micro-spray system.
TYPICAL APPLICATION
Apply water and fertilizer in proportion during micro-irrigation, drip irrigation, and micro-spray;
Inject flocculating agent and so on proportionally in water treatment;
Add chemical solvent in proportion in the industrial chemical scene.
FEATURES AND ADVANTAGES:
1. Low cost, easy operation, stable fertilizer concentration, free extra power ;
2. Realize fertilizing in proportion to maintain a constant nutrient concentration;
3. Realize the integration of irrigation & fertilization and save fertilizer and manpower;
4. PP material with high resistance to chemicals used in agriculture;
5. Built-in check valve to prevent the injection liquid backflow;
6. Adaptable to all micro-irrigation, drip irrigation and micro-spray systems;
7. Easy installation, operation and maintenance.
How it works
Use three-way, elbow and other parts to connect Venturi fertilizer injector in parallel to the main valve of the main waterway.
Turn down the waterway main valve when working, it will form a differential pressure which makes the water flow through the branch
of Venturi injector. The Venturi tube is a kind of converging passage that gradually widens (see diagram). When the water flow
Through the narrow Venturi pipe’s throat, the flow rate could become increased and the pressure could become decreased. When there is a smaller diameter pipe accordingly equipped in the Venturi tube’s throat, the created negative pressure would draw the liquid fertilizer into the pipe system to fertilize from the exposed fertilizer bucket. The switch valve at the entrance can adjust the
proportion of the intake of water and fertilizer.
