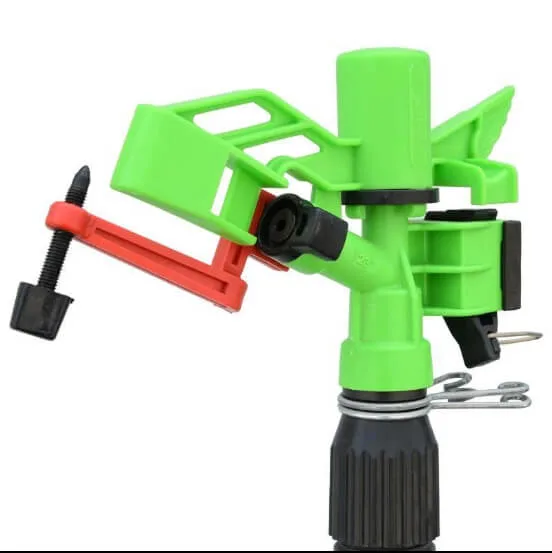

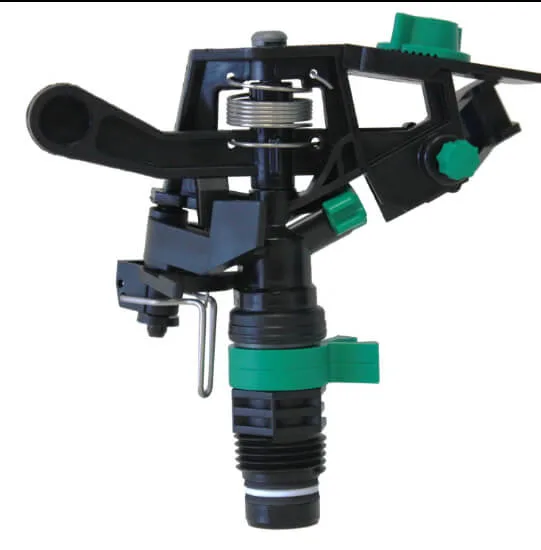

Single Irrigation Sprinkler | 15 Diameter Radius

Description

The Single Irrigation Sprinkler | 15 Diameter Radius is a durable, high-performance sprinkler designed to deliver uniform water distribution across a 15-meter diameter radius (7.5m radius). Ideal for gardens, lawns, small farms, and landscaped areas, this sprinkler ensures efficient water coverage with minimal runoff.

Its robust construction and adjustable spray patterns make it suitable for diverse irrigation needs, from nurturing delicate flower beds to maintaining expansive turf areas.

 Key Features of Single Irrigation Sprinkler | 15 Diameter Radius:

• Wide Coverage: Covers up to 15m diameter (177m² area) with consistent water distribution.

• Adjustable Spray: Customize spray angle (30°–360°) and distance to suit different zones.

• Durable Build: Corrosion-resistant materials (stainless steel nozzle, UV-stabilized plastic body) for long-term outdoor use.

• Easy Installation: Compatible with standard garden hoses (1/2″ or 3/4″ connectors) and irrigation systems.

• Water Efficiency: Reduces waste with even droplet dispersion and low-pressure operation (1.5–3.5 bar).

• Wind-Resistant Design: Maintains coverage accuracy even in breezy conditions.

 Characteristics:

• Coverage Radius: 7.5m (15m diameter).

• Flow Rate: 500–1,200 liters/hour (adjustable via nozzle).

• Operating Pressure: 1.5–3.5 bar (20–50 psi).

• Material: UV-resistant ABS plastic, stainless steel internals.

• Weight: 450g (lightweight for easy repositioning).

• Warranty: 2-year manufacturer warranty against defects.

Installation Steps:

1. Prepare the Hose/Irrigation Line

   • Ensure your garden hose or irrigation line is clean and free of debris.

   • If using Teflon tape, wrap it around the male threads of the hose connector to create a watertight seal.

2. Attach the Sprinkler to the Hose

   • Screw the sprinkler’s inlet (base) onto the hose or irrigation line by turning it clockwise.

   • Hand-tighten firmly. Use an adjustable wrench for an extra secure fit, but avoid over-tightening to prevent damage.

3. Position the Sprinkler

   • Place the sprinkler in the center of the area you want to water (e.g., lawn, garden bed).

   • Ensure the sprinkler is stable and upright on flat ground to avoid tipping.

4. Adjust the Spray Pattern

   • Rotate the nozzle collar to set the desired spray angle:

     • Full circle (360°) for complete area coverage.

     • Partial arc (30°–350°) for targeting specific zones (e.g., along fences or pathways).

   • Adjust the spray distance (if applicable) using the distance control screw or dial on the nozzle.

5. Test the System

   • Turn on the water supply slowly to avoid pressure surges.

   • Check for leaks at the hose connection. If leaks occur, tighten the connection or reapply Teflon tape.

   • Observe the spray pattern and adjust the angle/distance as needed for even coverage.

6. Final Adjustments

   • Ensure the sprinkler covers the entire 15m diameter without overspray onto non-target areas (e.g., driveways, walls).

   • For large areas, use multiple sprinklers spaced 14–15m apart with overlapping zones (~10% overlap).

Usage Tips:

• Water Pressure: Ensure operating pressure stays within 1.5–3.5 bar (20–50 psi). Too high? Attach a pressure regulator.

• Timing: Water early morning or evening to reduce evaporation.

• Nozzle Maintenance: Clean the nozzle monthly with a soft brush to remove sediment or debris.

• Ideal For:

  • Home gardens, lawns, and sports fields.

  • Small-scale vegetable plots or flower beds.

  • Dust suppression on construction sites or pathways.

 Maintenance & Safety:

• Storage: Drain water and store indoors during freezing temperatures.

• Troubleshooting:

  • Uneven spray? Check for debris in the nozzle or low water pressure.

  • Leaks? Ensure hose connections are tightly sealed.

• Safety: Avoid directing spray at electrical fixtures or unstable surfaces.
